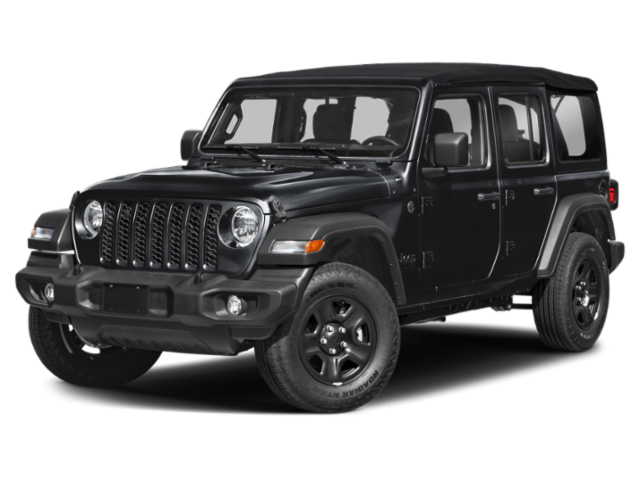

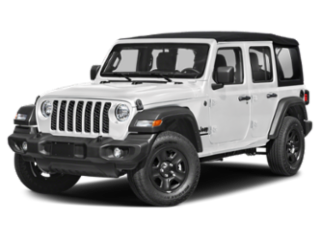

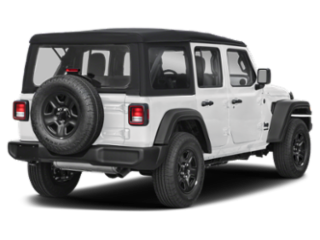

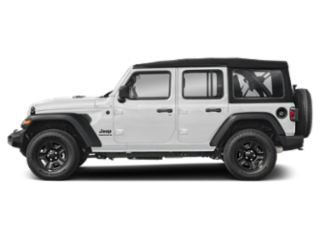

2024 Jeep Wrangler

All Technical Specs by Group

Chassis

• Standard Weight - Front: 0
• Standard Weight - Rear: 0
• Gross Axle Wt Rating - Front: 1,564.92
• Gross Axle Wt Rating - Rear: 1,610.28
• Curb Weight - Front: 1,250.12
• Curb Weight - Rear: 1,107.69
• Option Weight - Front: 0
• Option Weight - Rear: 0
• Reserve Axle Capacity - Front: 314.8
• Reserve Axle Capacity - Rear: 502.59
• As Spec'd Curb Weight: 2,357.81
• As Spec'd Payload: 545.23
• Maximum Payload Capacity: 545.23
• Gross Combined Wt Rating: 4,263.84
• Dead Weight Hitch - Max Trailer Wt.: 1,587.6
• Dead Weight Hitch - Max Tongue Wt.: 158.76
• Wt Distributing Hitch - Max Trailer Wt.: 1,587.6
• Wt Distributing Hitch - Max Tongue Wt.: 158.76
• Fifth Wheel Hitch - Max Trailer Wt.: N/A
• Maximum Trailering Capacity: 1,587.6
• Fifth Wheel Hitch - Max Tongue Wt.: N/A
• Frame Type: N/A
• Sect Modulus Rails Only: N/A
• Frame RBM: N/A
• Frame Strength: N/A
• Frame Thickness: N/A
• Suspension Type - Front: Leading Link
• Suspension Type - Rear: Trailing Arm
• Spring Capacity - Front: N/A
• Spring Capacity - Rear: N/A
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front: N/A
• Axle Capacity - Rear: N/A
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Shock Absorber Diameter - Front: N/A
• Shock Absorber Diameter - Rear: N/A
• Stabilizer Bar Diameter - Front: N/A
• Stabilizer Bar Diameter - Rear: N/A
• Front Tire Order Code: TVC
• Rear Tire Order Code: TVC
• Spare Tire Order Code: N/A
• Front Tire Size: LT315/70SR17
• Rear Tire Size: LT315/70SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity: N/A
• Rear Tire Capacity: N/A
• Spare Tire Capacity: N/A
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Front Wheel Size: 17 X 8
• Rear Wheel Size: 17 X 8
• Spare Wheel Size: Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering Type: Re-Circulating Ball
• Steering Ratio (:1), On Centre: N/A
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb: 11.83
• Turning Diameter - Wall to Wall: N/A
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness: 327.66
• Rear Brake Rotor Diam x Thickness: 355.6
• Drum - Rear (Yes or ): N/A
• Rear Drum Diam x Width: N/A
• Fuel Tank Capacity, Approx: 81.4
• Aux Fuel Tank Capacity, Approx: N/A
• Fuel Tank Location: N/A
• Aux Fuel Tank Location: N/A
• Gross Axle Weight Rating: 3,175.2
• Curb Weight: 2,357.81
• Reserve Axle Capacity: 817.39
• Total Option Weight: 0
• Payload Weight Front: 0
• Payload Weight Rear: 0
• Gross Vehicle Weight Rating: 2,903.04

Vehicle

• Kg/yr of CO2 Emissions @ 20K km/year: N/A
• G/km Of CO2 Emissions: 393

Powertrain

• Drivetrain: Four Wheel Drive
• EnerGuide Estimate - City: 18.7
• EnerGuide Estimate - Hwy: 14.5
• Cruising Range - City: 434.98
• Cruising Range - Hwy: 560.97
• Engine Order Code: ESG
• Engine Type: Premium Unleaded V-8
• Displacement: 6.4 L/392
• Fuel System: Sequential MPI
• SAE Net Horsepower @ RPM: 470 @ 6000
• SAE Net Torque @ RPM: 470 @ 4300
• Trans Order Code: DFV
• Trans Type: 8
• Trans Description Cont.: Automatic w/OD
• Trans Description Cont. Again: N/A
• First Gear Ratio (:1): 4.71
• Second Gear Ratio (:1): 3.14
• Third Gear Ratio (:1): 2.11
• Fourth Gear Ratio (:1): 1.67
• Fifth Gear Ratio (:1): 1.28
• Sixth Gear Ratio (:1): 1.00
• Reverse Ratio (:1): 3.29
• Clutch Size: N/A
• Trans Power Take Off: N/A
• Final Drive Axle Ratio (:1): N/A
• Transfer Case Model: Manual
• Transfer Case Gear Ratio (:1), High: N/A
• Transfer Case Gear Ratio (:1), Low: N/A
• Transfer Case Power Take Off: No
• Cold Cranking Amps @ 0° F (Primary): 700
• Cold Cranking Amps @ 0° F (2nd): 700
• Maximum Alternator Capacity (amps): 240
• Cold Cranking Amps @ 0° F (3rd): N/A
• Total Cooling System Capacity: N/A
• Engine Oil Cooler: Regular Duty
• Seventh Gear Ratio (:1): 0.84
• Eighth Gear Ratio (:1): 0.67
• Estimated Battery Range: N/A

Dimensions

• Passenger Capacity: 5
• Front Head Room: 1,036.32
• Front Leg Room: 1,036.32
• Front Shoulder Room: 1,417.32
• Front Hip Room: 1,369.06
• Second Head Room: 1,023.62
• Second Leg Room: 970.28
• Second Shoulder Room: 1,417.32
• Second Hip Room: 1,419.86
• Wheelbase: 3,007.36
• Length, Overall: 4,785.36
• Width, Max w/o mirrors: 1,877.06
• Height, Overall: 1,892.3
• Track Width, Front: 1,635.76
• Track Width, Rear: 1,635.76
• Overhang, Front: N/A
• Overhang, Rear w/o bumper: N/A
• Front Bumper to Back of Cab: N/A
• Cab to Axle: N/A
• Cab to End of Frame: N/A
• Ground to Top of Load Floor: N/A
• Ground to Top of Frame: N/A
• Frame Width, Rear: N/A
• Ground Clearance, Front: N/A
• Ground Clearance, Rear: N/A
• Min Ground Clearance: 281.94
• Body Length: 0
• Rear Door Opening Height: N/A
• Rear Door Opening Width: N/A
• Cargo Area Length @ Floor to Seat 1: N/A
• Cargo Area Length @ Floor to Seat 2: N/A
• Cargo Area Length @ Floor to Seat 3: N/A
• Cargo Box Width @ Top, Rear: N/A
• Cargo Area Width @ Beltline: 1,216.66
• Cargo Box Width @ Floor: N/A
• Cargo Box Width @ Wheelhousings: 1,054.1
• Cargo Box (Area) Height: 906.78
• Liftover Height: 782.32
• Tailgate Width: N/A
• Cargo Volume: N/A
• Cargo Volume to Seat 1: 1,908.56
• Cargo Volume to Seat 2: 784.38
• Cargo Volume to Seat 3: 784.38
• Ext'd Cab Cargo Volume: N/A
• Cab to Body: N/A

Standard Equipment

SUSPENSION PKG

• 35" Tire Rubicon 392 Suspension

MECHANICAL

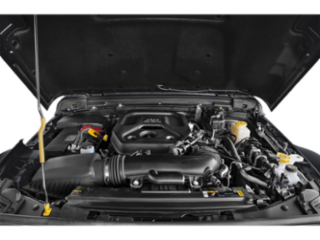

• Engine: 6.4L SRT HEMI V8 w/FuelSaver MDS (STD)
• Transmission: 8-Speed TorqueFlite Automatic (STD)

AXLE RATIO

• 4.56 Rear Axle Ratio

GVWR

• GVWR: 2,902 kgs (6,400 lbs)

ADDITIONAL EQUIPMENT

• Transmission w/Sequential Shift Control w/Steering Wheel Controls
• Manual Transfer Case
• Part And Full-Time Four-Wheel Drive
• Driver Selectable Front Locking Differential
• Driver Selectable Rear Locking Differential
• Engine Oil Cooler
• 700CCA Maintenance-Free Battery w/Run Down Protection
• 240 Amp Alternator
• Class II Towing Equipment -inc: Hitch and Trailer Sway Control
• Trailer Wiring Harness
• 5 Skid Plates
• 454.5 Kgs Maximum Payload
• Front Active w/Driver Control Anti-Roll Bar and Rear Anti-Roll Bar
• Fox Brand Name Shock Absorbers
• Electro-Hydraulic Power Assist Steering
• 81.4 L Fuel Tank
• Dual Stainless Steel Exhaust
• Auto Locking Hubs
• Leading Link Front Suspension w/Coil Springs
• Solid Axle Rear Suspension w/Coil Springs
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control and Hill Hold Control
• Upfitter Switches
• Brake Actuated Limited Slip Differential
• Aluminum Spare Wheel
• Full-Size Spare Tire Mounted Outside Rear
• Clearcoat Paint w/Decal
• Manual Targa Composite 1st Row Sunroof
• Black Front Bumper w/2 Tow Hooks
• Black Rear Bumper w/1 Tow Hook
• Black Side Windows Trim
• Black Door Handles
• Black Wheel Well Trim and Body-Coloured Fender Flares
• Black Power Heated Side Mirrors w/Manual Folding
• Flip-Up Rear Window
• Deep Tinted Glass
• Variable Intermittent Wipers
• Rear Window Defroster
• Rear Window Wiper w/Washer
• Galvanized Steel/Aluminum/Magnesium Panels
• Body-Colour Grille w/Coloured Accents
• Manual Convertible Hard Top w/Glass Rear Window and Fixed Roll-Over Protection
• Swing-Out Rear Cargo Access
• Tailgate/Rear Door Lock Included w/Power Door Locks
• Front Fog Lamps
• LED Brakelights
• Auto On/Off Reflector Led Low/High Beam Daytime Running Auto High-Beam Headlamps w/Delay-Off
• Headlights-Automatic Highbeams
• Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Aux Audio Input Jack, Steering Wheel Controls, Voice Activation, Radio Data System and Uconnect External Memory Control

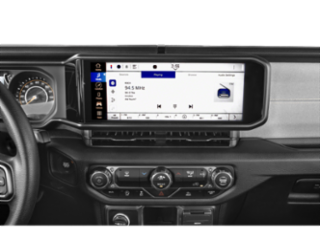

• Radio: Uconnect 5 Nav w/12.3" Display
• Streaming Audio
• Window Grid Antenna
• 9 Alpine Speakers
• 552w Regular Amplifier
• 2 LCD Monitors In The Front
• Uconnect w/Bluetooth Wireless Phone Connectivity
• Front Seats w/Power 4-Way Driver Lumbar
• 12-Way Power Driver Seat -inc: Power Recline, Height Adjustment, Fore/Aft Movement, Cushion Tilt and Power 4-Way Lumbar Support
• 12-Way Power Passenger Seat -inc: Power Recline, Height Adjustment, Fore/Aft Movement, Cushion Tilt and Power 4-Way Lumbar Support
• 60-40 Folding Split-Bench Front Facing Fold Forward Seatback Leather Rear Seat
• Manual Tilt/Telescoping Steering Column
• Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Inclinometer, Altimeter, Oil Temperature, Transmission Fluid Temp, Engine Hour Meter, Trip Odometer and Trip Computer
• Power Rear Windows and Fixed 3rd Row Windows
• Mobile Hotspot Internet Access
• Heated Leather Steering Wheel
• Illuminated Front Cupholder
• Illuminated Rear Cupholder
• 2 12V DC Power Outlets
• Compass
• Proximity Key For Doors And Push Button Start
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Garage Door Transmitter
• Cruise Control w/Steering Wheel Controls
• Voice Activated Dual Zone Front Automatic Air Conditioning
• HVAC -inc: Console Ducts
• Locking Glove Box
• Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert, Metal-Look Console Insert and Metal-Look Interior Accents
• Full Cloth Headliner
• Leather Gear Shifter Material
• Nappa Leather-Faced Seats
• Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination
• Day-Night Auto-Dimming Rearview Mirror
• Full Floor Console w/Locking Storage, 2 12V DC Power Outlets and 1 120V AC Power Outlet
• Front And Rear Map Lights
• Fade-To-Off Interior Lighting
• Carpet Floor Trim, Carpet And Rubber Mat
• Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats
• Locking Cargo Area Concealed Storage
• Cargo Space Lights
• Tracker System
• FOB Controls -inc: Remote Start
• Smart Device Remote Engine Start
• Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins
• Power 1st Row Windows w/Driver And Passenger 1-Touch Down
• Delayed Accessory Power
• Power Door Locks w/Autolock Feature
• Driver Information Centre
• Redundant Digital Speedometer
• Trip Computer
• Outside Temp Gauge
• Analog Appearance
• Manual Adjustable Front Head Restraints and Foldable Rear Head Restraints
• 2 Seatback Storage Pockets
• Driver And Passenger Heated-Cushion, Driver And Passenger Heated-Seatback

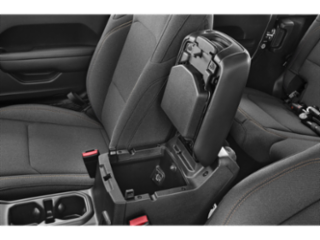

• Front Centre Armrest w/Storage and Rear Centre Armrest
• Perimeter Alarm
• Sentry Key Immobilizer
• 2 12V DC Power Outlets and 1 120V AC Power Outlet
• Air Filtration
• Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• ABS And Driveline Traction Control
• Side Impact Beams
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• ParkSense Rear Parking Sensors
• Blind Spot Detection Blind Spot
• and Cross Path Detection
• Aerial View Camera System
• Tire Specific Low Tire Pressure Warning
• Dual Stage Driver And Passenger Front Airbags
• Curtain 1st And 2nd Row Airbags
• Airbag Occupancy Sensor
• Rear Child Safety Locks
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Centre 3 Point, Height Adjusters and Pretensioners
• ParkView Back-Up Camera

WHEELS

• Wheels: 17" x 8" Mach/Bronze Beadlock

TIRES

• Tires: LT315/70R17C 113/110S
